Application Limits

◎ Liquid temperature:2℃～+110℃

◎ Maximum ambient temperature+40℃

◎ Maximum system pressure 10bar

◎ Protection level: IP42/IP44

◎ Mains connection:220V ～240V;50Hz

◎ Insulation class: F

◎ Pumped liquid characteristics: clean, free from solids and mineral oils,non-toxic, chemically neutral, close to the characteristics of water

◎ Installation: the motor shaft must be kept in horizontal direction

Features

◎ "A"Rated energy effidiency-Howest power consumption

◎ Permanent magnet motor-intelligent frequency conversion control

◎ Low noise, no leakage

◎ Proportional pressure mode

◎ Constant speed mode

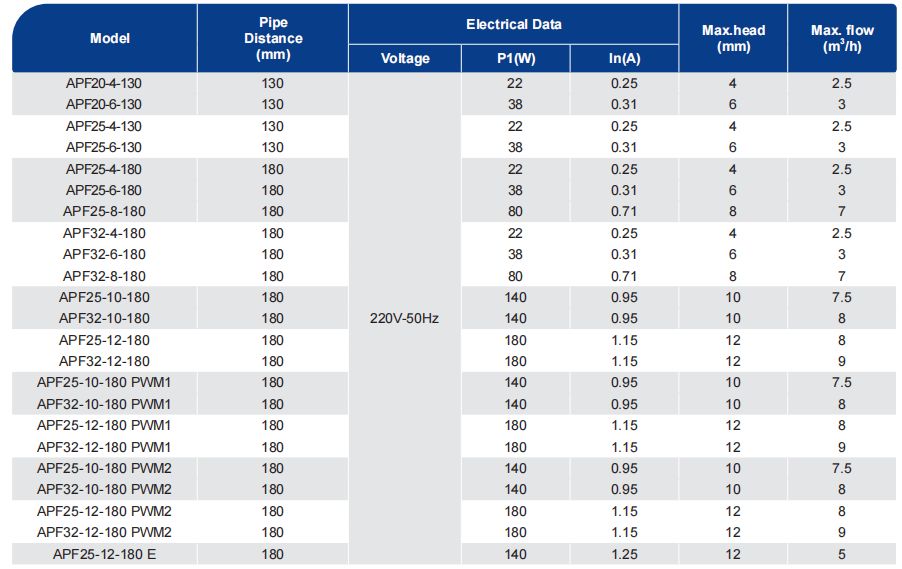

Performance Data
