Performance Range

Max. Flow: 7.2m3/h Max. Head: 66m

Application Limits

◎ Max. ambient temperature< 40℃ ;
◎ Maximum permissible quantity of sand:100g/m³ ;

◎ Hydrogen sulfide content up to 1.5mg/L, chloride ion

content up to 400mg/L;
◎ pH 6.5 to 8.5;
◎ Maximum: 5m below the static water table.

Certificate
CE

Application Fields

◎ On-site filtered effluent, cistern
◎ Building/construction work/Domestic water supply; ◎ Irrigation and Small water work;
◎ Landscaping;
◎ Water conservancy system;
◎ Factory

Features

◎ Edible oil filled motor
◎ Single phase motor with built in B Grade oil proofed

   capacitor &thermal mode protector
◎ Built-in motor, the suction pump body ◎ Installation in 4" or larger boreholes.

Optional Available On Request

(* Standard configuration on Page 34)
Flow switch is optional

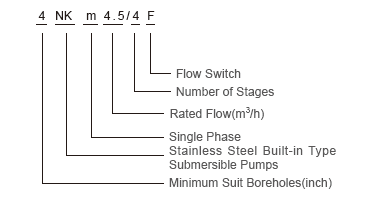

Model Instruction
