Performance Range

Max. Flow: 10.8m3/h
Max. Head: 252m

Application Limits

◎ Max. ambient temperature< 40℃;
◎ Maximum permissible quantity of sand:100g/m³ ;
◎ Hydrogen sulfide content up to 1.5mg/L, chloride ion
content up to 400mg/L;
◎ pH 6.5 to 8.5;
◎ Maximum: 70m below the static water table.


Application Fields

◎ Building/construction work/Domestic water supply;
◎ Irrigation and Small water work;
◎ Landscaping;
◎ Water conservancy system;
◎ Factory.


◎ Edible oil filled motor, stable& reliable running with pressure regulating membrane;

◎ Single phase motor equipped with start box which built in

capacitor &current mode thermal protector, convenient for


◎  Available with stainless steel pump head, effective against

the corrosion and abrasive wear;

◎ Installation in 4" or larger boreholes.

Optional Available On Request

(* Standard configuration on Page 22)

Pipe connection of discharge chamber is available with

1.25",1.5", 2".

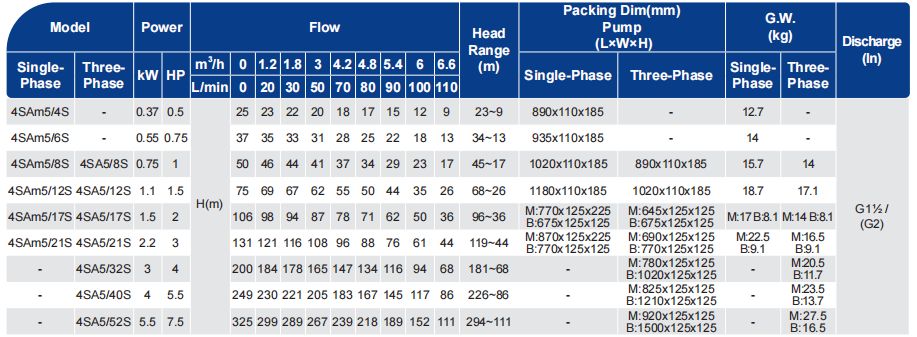

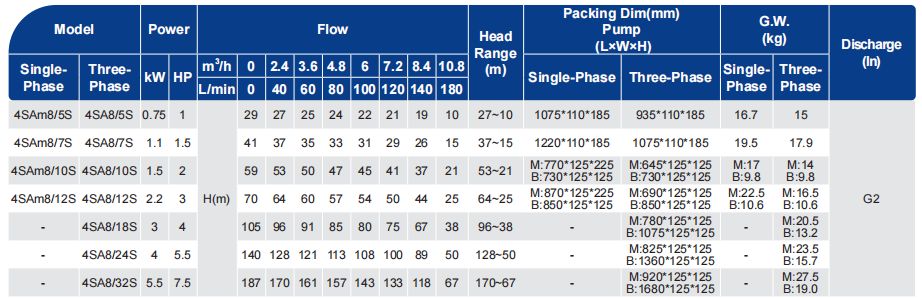

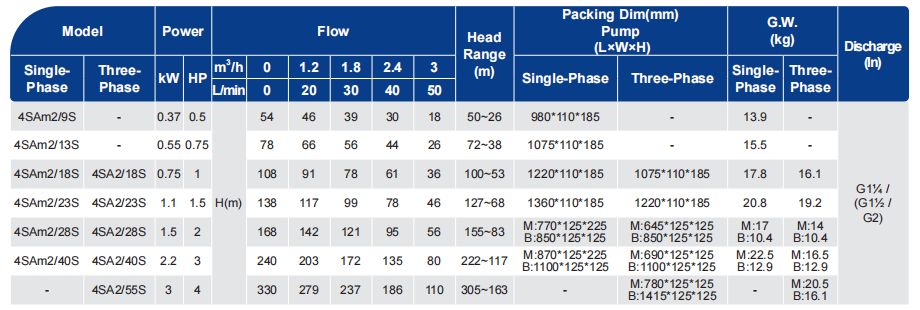

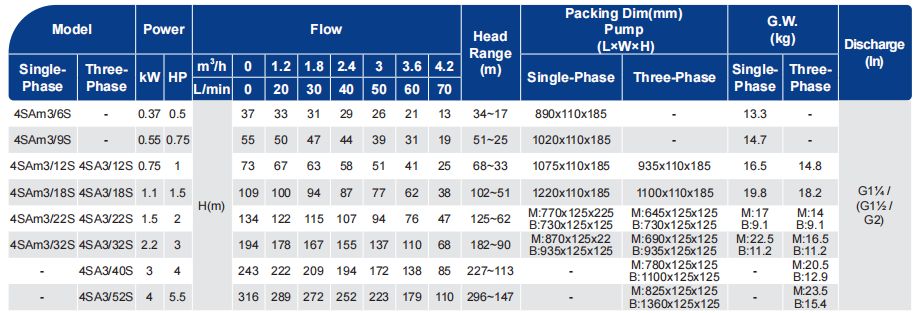

Model Instruction
