50HZ
60HZ

Performance Range

Max. Flow: 4.5m3/h
Max. Head: 8m

Application Limits

◎ Liquid temperature: +2℃~+110℃
◎ Maximum ambient temperature +40℃
◎ Maximum system pressure 10bar
◎ Protection level: IP44

◎ Mains connection: 115V/60Hz

◎ Insulation class: H

◎ Pumped liquid characteristics: clean, free from solids

and mineral oils, non-toxic, chemically neutral, close to the

characteristics of water

◎ Installation: the motor shaft must be kept in horizontal

direction

◎ PH: 6.5 to 8.5

Certificate

Application Fields

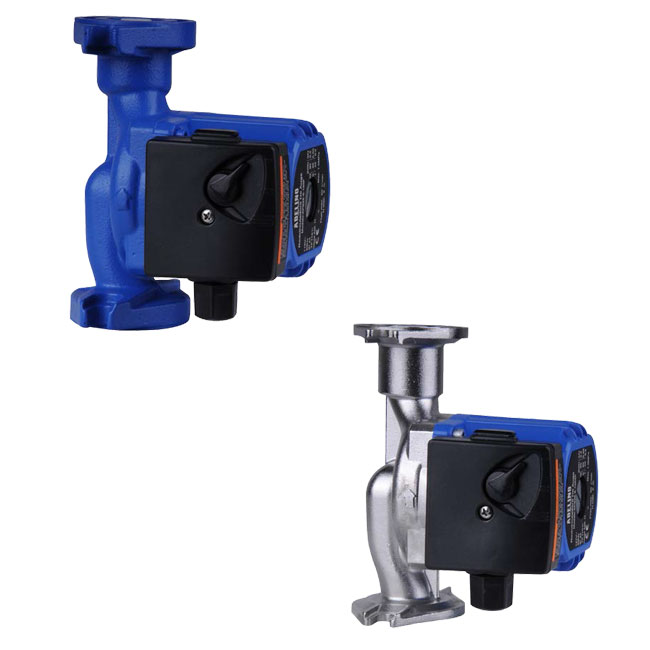

XPS pumps are designed for circulation of liquids in heating and air-conditioning systems. Pumps with bronze or stainless steel housings are also suitable for use in hot-water service systems. Examples of typical applications are mix water underfloor heating system, air energy hot water circulation system, solar hot water circulation system, etc.

Features

◎ 3-speed adjustment

◎ Low noise


◎ No leakage

◎ Built-in check valve

Optional Available On Request

(* Standard configuration on Page 45)

◎ Enamel pump body, stainless steel pump body

Model Instruction
