Application Limits

◎ Liquid temperature:+2℃～+110℃

◎ Maximum ambient temperature+40℃

◎ Maximum system pressure 10bar

◎ Protection level: IP44

◎ Mains connection:220V/50Hz、380V/50Hz

◎ Insulation class: F

◎ Pumped liquid characteristics: clean, free from solids and mineral oils, non-toxic, chemically neutral, close to the characteristics of water

◎ Installation: the motor shaft must be kept in horizontal direction

◎ pH: 6.5 to 8.5

Advantages & Features

◎ Wet rotor, canned motor, low noise, no leakage

◎ Siicon carbide friction pair, which is very wear-resisting

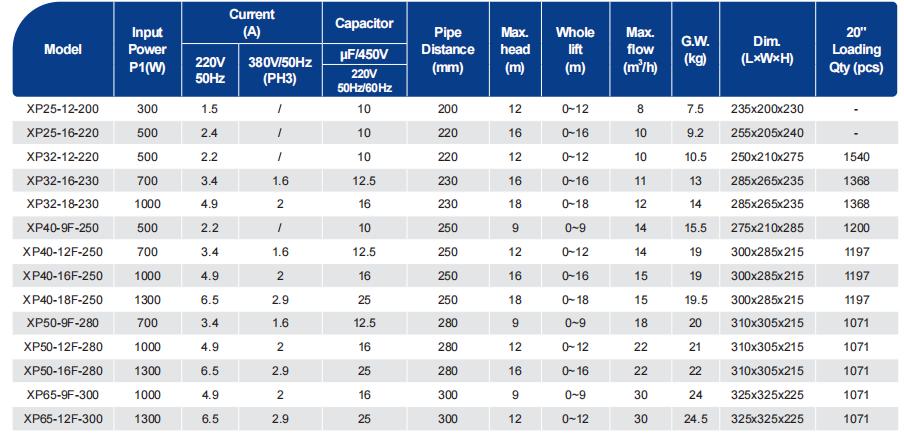

Performance Data
