Performance Range
Max,Flow;149m³/h
Max.Head:44m
Application Limits
◎ Maximum liquid temperature +40℃
◎ pH level from 4-10
◎ Maximum liquid density 1.2x10³kg/m³
◎ Power frequency is 50Hz.Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from -10%to 10%.
◎ Immersion depth from 0.5m-5m
Certificate
Application Fields
AQ(D)-L1 series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection,etc.They are suitable for draining water containing particles such as short fibers, paper scraps, etc.and soft solid, such as muddy water, dirty water, domestic wastewater, sewage, manure,etc.They are ideal equipment for agricultural irrigation and drainage,poolsilt cleaning and site construction,but do not apply to the location with explosion-proof requirements.
Features
◎ The whole cast iron design,wear-resistant,durable and nice appearance.
◎ Double channel impeller,good flow capacity,excellent hydraulicperformance.
◎ Stainless steel shaft extension,carbide double-sides mechanical sealing.
Model Instruction
Performance Range
Max. Flow: 140m³/hMax. Head: 44m
Application Limits
◎ Maximum liquid temperature +40℃
◎ pH level from 4-10
◎ Maximum liquid density 1.2×10³ kg/m³
◎ Power frequency is 60Hz.Nominal voltage is 120VAC or
220VAC for single phase and 380VAC for three phase with
the range from -10% to +10%.
◎ Immersion depth from 0.5m-5m
Certificate
Application Fields
WQ(D) series pumps are widely applied in industry, agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining watercontaining particles such as short fibers, paper scraps,etc. and soft solid,such as muddy water, dirty water, domestic wastewater, sewage, manure, etc. They are ideal equipmentfor agricultural irrigation and drainage,poolsiltcleaning and site construction, but do not apply to the location with explosion-proof requirements.
Features
◎ Wear-resistant whole cast iron parts design
◎ Double channel impeller, good flow capacity, excellent
hydraulic performance
◎ The stainless steel shaft extension, carbide double sides
mechanical sealing
Optional Available On Request
(* Standard configuration on Page 115)

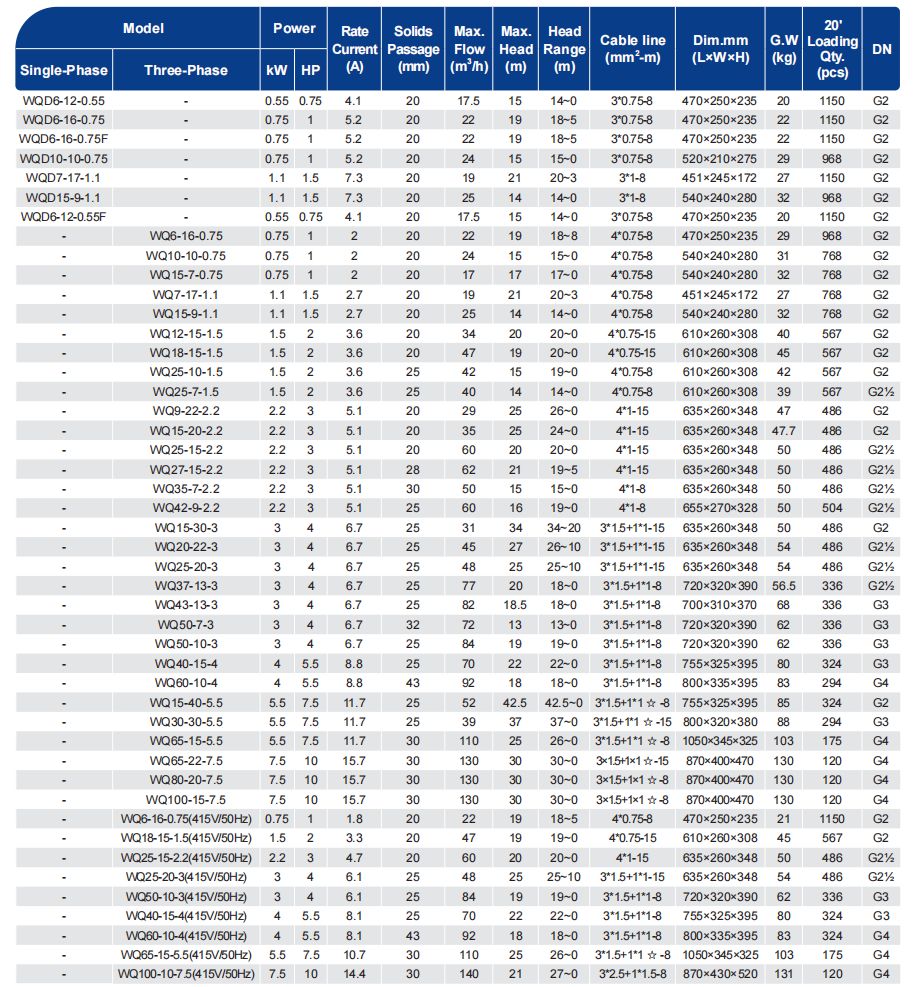

Model Instruction
