Application Limits
◎ Maximum liquid temperature +40℃
◎ pH level from 6.5-8.5
◎ Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
◎ Power frequency is 50Hz.Nominal voltage is 220VAC for single phase and 380VAC for three phase with the range from-10% to 10%.
◎ Immersion depth from 0.5m-5m
Advantages & Features
◎ New-designed motor structure ,longer service life.
◎ Portable and durable aluminum alloy structure.
◎ Alloy impeller of high performance engineeringplastics or aluminum.

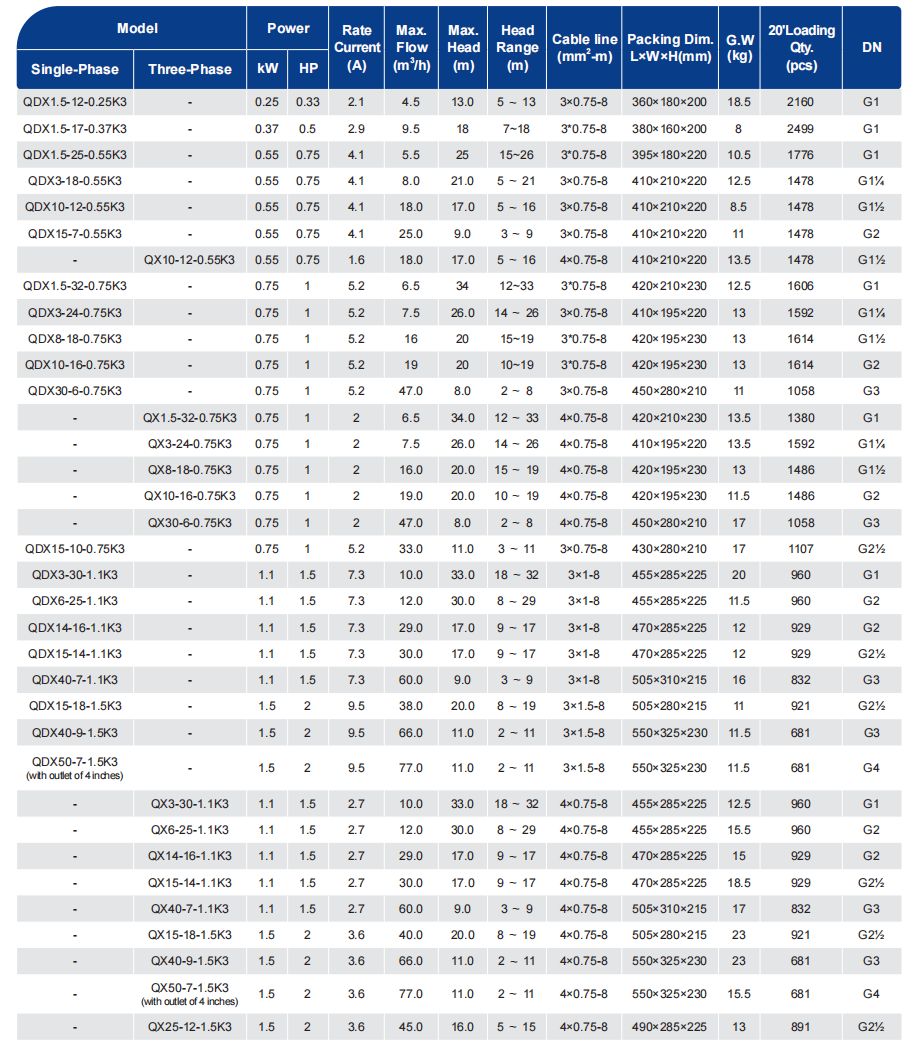

Performance Data
Performance Range
Max. Flow:60m³/h
Max. Head:33m
Application Limits
◎ Maximum liquid temperature +40℃
◎ pH level from 6.5-8.5
◎ Maximum sand content is 0.1%.Passage of suspendedsolids up to 0.2mm
◎ Power frequency is 60Hz.Nominal voltage is 220VACforsingle phase with the range from -10% to+10%.
◎ Immersion depth from 0.5m-5m
Certificate
Application Fields
QDX-K3 series pumps are widely applied in industry,agriculture, mining, construction, municipal, environmental protection, etc. They are suitable for draining water containing particles such as short fibers, paper scraps,etc. and soft solid,such as muddy water, dirty water, domestic wastewater,sewage, manure, etc. They are idealequipment for agricultural irrigation and drainage,poolsilt cleaning and site construction,but do not apply to the location with explosion-proof requirements.
Model Instruction
