50HZ

Performance Range

Max.Flow:31m²/h

Max.Head:120m


Application Limits

◎ Maximum liquid temperature +40℃

◎ pH level from 6.5-8.5

◎ Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm

◎ Power frequency is 50Hz.Nominal voltage is 220VAC for single phase with the range from-10%to+10%,

◎ Immersion depth from 0.5m-5m


Certificate


Application Fields

Due to multi-stage structure,AD series pumps with high pressure are widely applied in many fields,such as agricultural irrigation,sprinkler irrigation,garden irrigation,water supply for wells,reservoirs,aquaculture,etc.


Features

◎ High head,multistage centrifugal pump

◎ Compact structure,covering small area,convenient to move and use

◎ The angular contact ball bearing,improving the service life

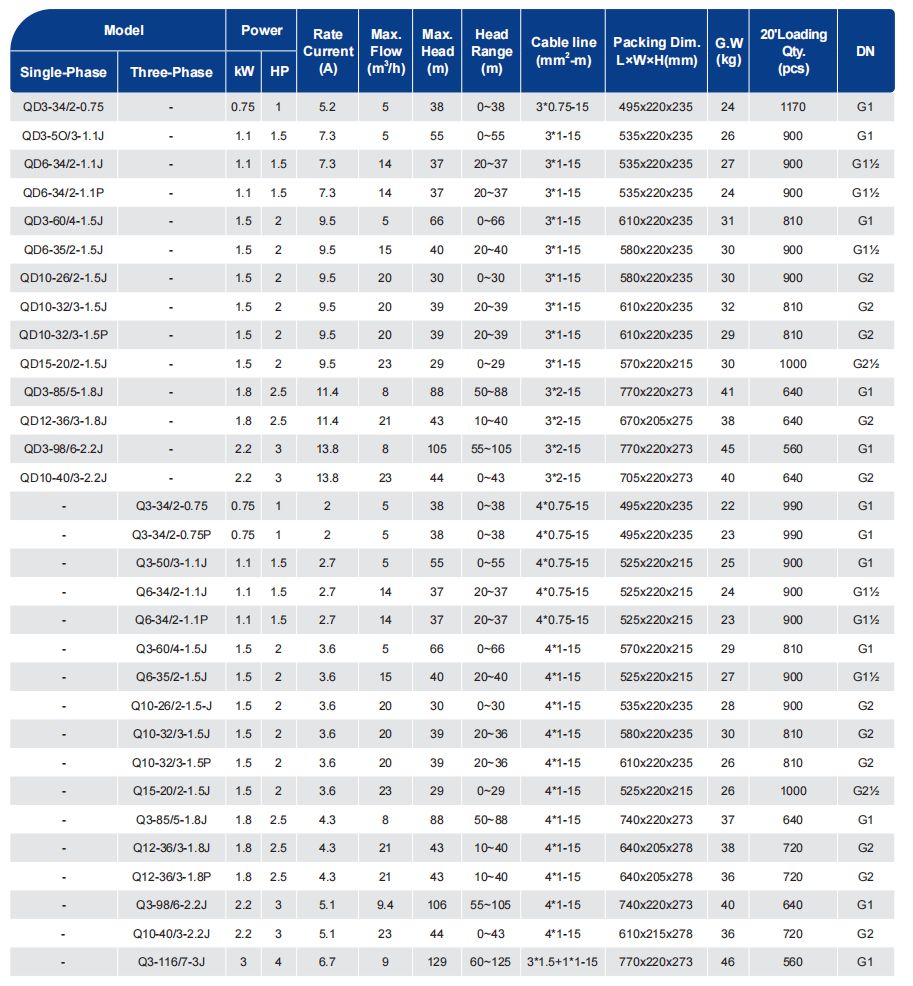

Model Instruction

60HZ

Performance Range

Max. Flow: 24m³/h

Max. Head: 62m


Application Limits

◎ Maximum liquid temperature +40℃

◎ pH level from 6.5-8.5

◎ Maximum sand content is 0.1%.Passage of suspended solids upto 0.2mm

◎ Power frequency is 60Hz.Nominal voltage is 220VAC for single phase with the range from -10%to+10%.

◎ Immersion depth from 0.5m-5m


Certificate


Application Fields

Due to multi-stage structure, QD series pumps with high pressure are widely applied in many fields, such as agriculttural irrigation, sprinkler irrigation, garden irrigation, water supply for wells, reservoirs, aquaculture, etc.


Features

◎ High head, multistage centrifugal pump

◎ Compact structure, covering small area, convenient to move and use

◎ The angular contact ball bearing, improving the service life


Model Instruction
