Performance Range
Max.Flow;58m²/h
Max.Head:33m
Application Limits
◎ Maximum liquid temperature +40℃
◎ pH level from 6.5-8.5
◎ Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
◎ Power frequency is 50Hz.Nominal voltage is 220V/440V for three phase with the range from-10%to+10%.
◎ Immersion depth from 0.5m-5m
Certificate
Application Fields
The pump has compact structure,is adapted to draw water from well,farm irrigation,garden spray,and single-family houses water supply,and especially suitable for water supply applications in remote locations,such as industry,building operations and aquaculture drain or irrigate.
Features
◎ Three-phase submersible pumps (dual voltage motor)
◎ The pump is located on bottom
◎ Cast iron parts,strong and durable
◎ Double mechanical seal
◎ The insulation class is B grade and enclosure class is IPXB
Model Instruction
Performance Range
Max. Flow: 18.5m³/hMax. Head: 33m
Application Limits
◎ Installing depth up to 5m
◎ Liquid temperature up to +40℃
◎ pH leve from 6.5-8.5
◎ Maximum sand content is 0.1%.Passage of suspended
solids up to 0.2mm
Certificate
Application Fields
◎ Suitable for transferring water without abrasive particles
◎ Suitable for well water lifting,farm irrigation,garden irrigation
and living water supply
◎ Suitable for industrial water eliminating,construction water
supply and drainage,breeding industry water supply and
drainage,etc.
Features
◎ New appearance design, high quality life
◎ Anti-overloading motor design, not easy to burn machine
◎ Lightweight design, easy to maintenance;
◎ water from the bottom, extracting a lower water level;
◎ Adopt PPOG20 plastic impeller, durable;
◎ Stainless steel screws, easy to maintain;
Optional Available On Request
(* Standard configuration on Page 104)

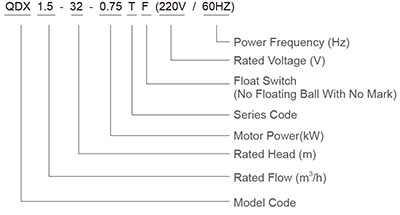

Model Instruction
