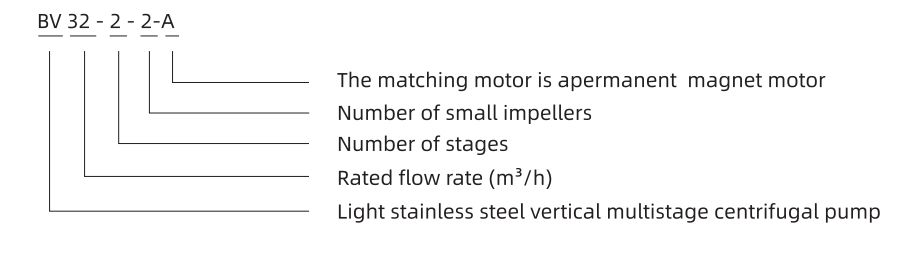

Model Instruction

Overview Of The Product

The BVA series light stainless steel vertical multistage centrifugal pumps are non-self-priming vertical multistage centrifugal pumps designed and manufactured by absorbing advanced technology both at home and abroad,and adopt IE5 permanent magnet variable frequency motor and alloy mechanical seal,which are are easy to replace.The flow passage parts of the BVA pump are all made of stainless steel,and some flow passage parts of the BVTA pumps are made of cast iron,so they are applicable to lightly corrosive media.After the products are put on the market,they are deeply favored by users for their high efficiency,energy saving,reliable quality,and wide range of use.

Application

◎ Temperature range of medium:Normaltype 0~+68℃,hot water type 68°℃~+120℃

◎ Maximum ambient temperature:+40°C

◎ Maximum working pressure:1.0 Mpa

◎ When the density or viscosity of the transmission medium exceeds that of water,it is necessaryto select a drving motor of high-power.

◎ pH:6.5 to 8.5

Applications Fields

◎ Pressurized water supply

◎ Water treatment system

◎ Industrial liquid transportation

◎ Farmland irrigation

Certificate

Optional Available On Request

◎ Insulation class:F

◎ Standard voltage (50Hz):Single phase 220v

◎ Three phase:380v or 220v
