50HZ

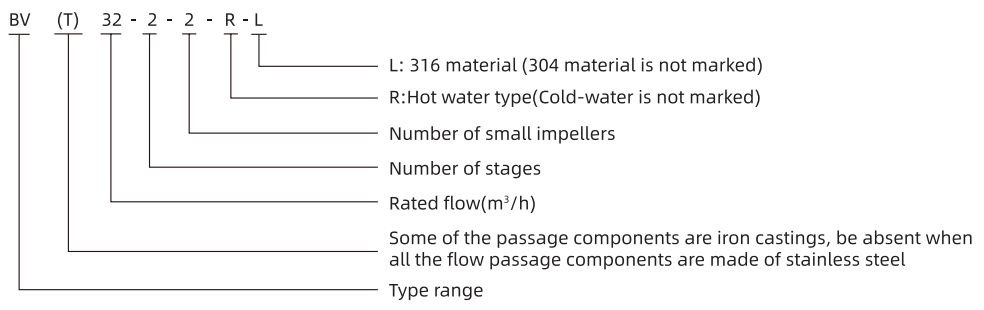

Model Instruction


Overview Of The Product

BV(T) series stainless steel multi-stage centrifugal pump(afterwards called pump)boasts characters of high efficiency,low noise,steady operation,etc.The pump set adoptsthe non-self-priming vertical multi-stage structure,which makes a compact whole,its installation easy,its operation and maintenance convenient.


Applications Limits

◎ Medium temperature:normal type:0℃~68℃   hot water type:68℃~120℃

◎ Ambient temperature:+40℃

◎ Advisable to use motor of higher power in case that the density or viscosity of medium is above that of water.

◎ pH:5 to 8


Certificate


Electric Motor

◎ Full-enclosed and ventilating two-pole standard motor

◎ Protection class:IP55

◎ Insulation class:F

◎ Standard voltage Single phase 220V-50Hz Three phase:220/380V-50Hz

60HZ
